Cyber Saiyan
The official badge page states that Cyber Saiyan designed and developed the RomHack Camp 2022 badge.
SourceRomHack Camp 2022 · Italy · 2022
RomHack Camp 2022 Badge
ESP32-C3 dragon-sphere camp badge
A Cyber Saiyan-designed ESP32-C3 badge for RomHack Camp 2022, with seven RGB LEDs, BLE badge discovery, schedule screens, WiFi/AP functions, snake, a 2.4 inch TFT, two rear buttons, and AA battery power.
EventRomHack Camp 2022
SeriesRomHack Camp
LocationRome
CountryItaly

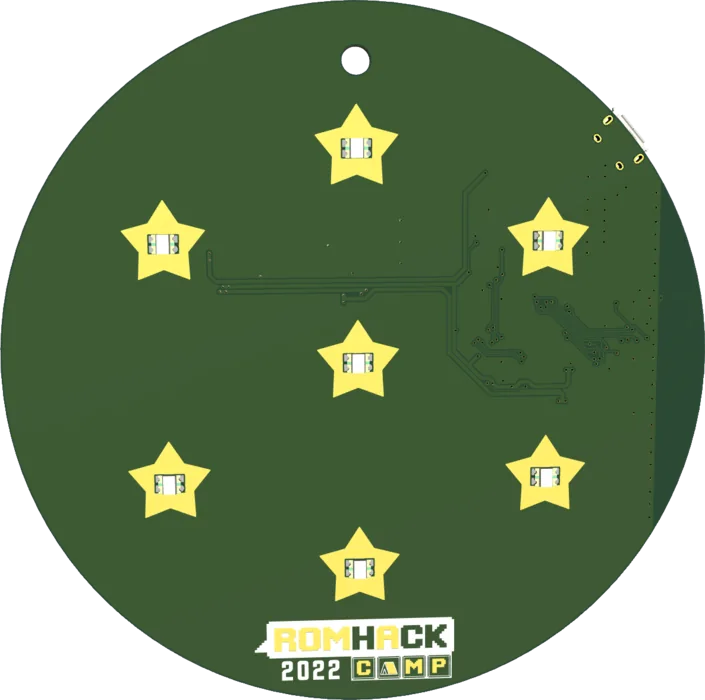

Image Provenance
- Asset
- optimized WebP from repository render
- Status
- licensed original repository render
- Source
- img/RHC22_badge_front.png
- License
- MIT License
- Attribution
- CyberSaiyanIT/rhc22-badge repository contributors
- Notes
- Original 1218x1209 transparent upstream raster front render downloaded from the public CyberSaiyanIT/rhc22-badge repository, trimmed and resized for the site badge canvas while preserving transparency. The upstream repository is MIT licensed and also includes a rear render; this site asset uses the front render as the badge hero rather than a documentary field photo. The published badge.gallery delivery file is an optimized WebP generated from the rights-cleared local derivative/source with metadata stripped, WebP quality 82, and a maximum side cap of 1600 pixels when the source is larger; upstream source URL, license, and attribution remain unchanged.
People
Authors & Credits
Why It Mattered
RomHack's badge is a strong Italian camp record because it ties hardware hacking, camp schedule utility, BLE social discovery, and playful dragon-sphere lore into a first-camp artifact.
Hardware
The official badge page and README document an ESP32-C3 single-core RISC-V SoC at up to 160 MHz, 22 GPIOs, 400 KB internal RAM, 4 MB flash, WiFi, Bluetooth 5, seven front RGB LEDs, a 2.4 inch TFT display, two rear buttons, and a two-AA battery holder.
Software & Apps
The badge shipped with Cyber Saiyan firmware, advertised itself over BLE with a 1-7 ID, included schedule, badge radar, badge list, WiFi/AP and sync screens, and provided firmware/build instructions in the public GitHub repository.
Lore
The seven RGB LEDs deliberately recall dragon spheres; the badge-radar screen turns nearby BLE badges into a dragon-ball-style social hunt across the camp.
Lifecycle
Add-ons & Upgrades
camp utility
historical
Schedule and WiFi sync screens
The firmware exposed schedule viewing plus AP and schedule-sync modes so attendees could update and interact with camp data from the badge.
Source
game
historical
Snake game
The fifth firmware screen provided a playable snake game, giving the badge an explicit entertainment surface beyond schedule and discovery functions.
Source
post-event firmware lifecycle
historical
MOCA 2024 firmware branch and hack contest
Cyber Saiyan reused the RHC22 badge as a MOCA 2024 workshop and contest target, publishing a dedicated firmware branch and inviting owners to bring the badge, a PC, and USB cable.
Source
social app
historical
BLE badge radar
The badge advertised itself over BLE with a 1-7 ID and included radar and badge-list screens for discovering nearby badges in camp.
SourceOperational history
Issues & Camp Impact
field-kit dependency
note
Badge hacking depended on attendee-supplied USB and battery power.
The official page recommended a micro USB data cable plus replacement AA batteries or a power bank, so a prepared kit mattered for camp hacking.
- Confidence
- primary docs
- Status
- documented
- Timeframe
- during event
- Source note
- RomHack badge page and RHC22 README.
image provenance upgrade
note
The RomHack Camp 2022 visual now uses the transparent upstream `img/RHC22_badge_front.png` front render from the public MIT-licensed CyberSaiyanIT/rhc22-badge repository.
The public badge page, image archive, and API point at a licensed upstream raster asset with source and attribution preserved.
- Confidence
- project image provenance and repository license
- Status
- licensed upstream raster replacement applied
- Timeframe
- current catalogue build
- Source note
- Project image provenance and CyberSaiyanIT/rhc22-badge repository.
Resources
MOCA 2024 badge activities
community event page · Cyber Saiyan's MOCA 2024 page documents a workshop and firmware-hacking contest for the RomHack Camp 2022 badge.
MOCA 2024 firmware branch
firmware branch · Dedicated MOCA 2024 firmware branch for continued RHC22 badge hacking.
RHC22 badge firmware
source repo · Public CyberSaiyanIT firmware repository with README, build/upload instructions, images, and code.
RomHack Camp
official event page · Official RomHack camp context for the Italian hacker-camp lineage.
RomHack Camp 2022 badge page
official badge page · Official badge feature list, package notes, firmware note, and GitHub link.
Sources
Cyber Saiyan: Cyber Saiyan
Retrieved 2026-05-15 · Public community identity for the team credited on the official badge page and repository.
Cyber Saiyan: MOCA 2024
Retrieved 2026-05-15 · Primary source for the MOCA 2024 RHC22 badge workshop, best-firmware-hack contest, and bring-your-badge instructions.
CyberSaiyanIT GitHub: RHC22 Badge
Retrieved 2026-05-15 · Primary firmware and README source for hardware, shipped firmware, toolchain, filesystem upload, and firmware upload instructions.
CyberSaiyanIT GitHub: moca2024 firmware branch
Retrieved 2026-05-15 · Source branch for MOCA 2024 badge firmware continuation.
RomHack: RomHack Camp 2022 - The Badge
Retrieved 2026-05-15 · Primary source for badge package, Cyber Saiyan authorship, hardware feature list, BLE behavior, schedule screens, WiFi functions, and snake game.
